Componentes para Via Permanente

As melhores soluções em componentes para Via Permanente.



As a leading manufacturer of rail fastening, our partner also can produce many other railway fasteners , such as track bolt . track spike .rail anchor .fish plate . Base plate .rail clips and so on .



Sticking to the “quality first” policy, our partner pays great attention to quality control management. We have granted ISO9001-2000 certificates. We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements

Tirefão
Prego de Linha
Prego de Linha
Tirefão
Tirefão

Screw spike /Sleeper screw / Coach screw/Rail screw



Specialize in producing rail fastening , screw spikes are our main products , these screws spikes are used to fasten sole plates & ribbed base plates to wooden sleepers. In the rail constructions with the concrete sleepers these screws are used in combination with a plastic dowel pressed in concrete sleeper . Below is some of our main products .



1. Ss series , according to UIC864-1 , grade from 4.6 .5.6 .8.8 Surface : plain (oiled ) .Zinc .Hdg Material : Q235 .35#. 45#.



Type                 Dimension (mm)                     Weight (Kg)



Ss5.-150                M24×150                              0.545

Ss8-140                 M24×140                              0.528

Ss8-150                 M24×150                              0.548

Ss8-160                 M24×160                              0.568

Ss23-160               M24×160                              0.645

Ss25.-165              M24×165                              0.625

Ss35.-161              M24×160                              0.657



Screw spikes with the standard ASTMA66-87 , cold bending 90 degree without cracks



2. Screw spike mostly used in South American and Africa with big disk 3V sleeper screw meet with NF F50-006 , grade 4.6 &5.6 , the mechanical properties are in accordance with UIC864-1 standard .



Coach screw used for mining industry

7. DHS35 screw spike , Supporting the use of the SKL14 system .

8. Screw spike 22×115 , assembly with SKL1 system with the grade 5.6 , according to the standard NF-F 50014 .

9 Special screw spike 23×174 , fix the rail together with the Nabla clip system, very popular in Africa ,We use the special material TD16 to produce the screw to meet with the bending test , bending 30 degree and straightening it , without crack .

10 .Dive spikes are available for a wide installations & maintenance of way , meet with the standard ASTMA66-87 , cold bending 90 degree without crack

Track spike /dog spike /boat spike/rail spike



Specialize in producing rail fastening , track spikes are our main products, which is in accordance to DIN/GOST/ AREMA /GB/TB standard , below is some of our main products



1. Track spikes are manufactured to ARMEA specifications in both soft steel and high tensile grade





Size                                Weight(Kg)

Square 3/8"×3"                    0.069

Square 3/8"×3-1/2"               0.078

Square 1/2"×4-1/2 "              0.165

Square 5/8"×5-1/2"               0.34

Square 5/8"×6"                     0.375



With regard to the high tensile grade of the USA AREMA specification, the material is the medium carbon steel; therefore, the chemical composition and mechanical properties should be as follows:



         C             Mn                  Si                    P                S

0.17 - 0.25%  0.9 - 1.35%      0.35 Max     0.04% Max      0.05 Max





Tensile strength       Yield point        Elongation (in 2" length sample)

70,000 psi Min            46,000 psi Min                        25% Min





2.Boat spikes are available both galvanized and black , common size are below : 3/8"×6" . 3/8"×8" . 3/8"×10" . 1/2"×10" . 1/2"×12" .



3. Rail spikes are used for BS80LBS.75LBS & 90LBS rails , in addition to our normal products , their shape and dimension can be produced and designed according to the specification of our customers . Their size can be 12mm .13mm.16mm , the length can be adjusted to client requirement



Dog spike with square shank as per AS1085.8 ,16mm square .19mm square &22mmsquare are available and round shank 16mm .19mm &22mm for Australia Market



4. Special rail spike are also available , such as 12×12 ×120. 14×14×140 .16×13×150 .



4. We also can produce the lock spike with many sizes according to our customers' requirement .



Track bolt /Fish bolt/Rail joint screw



Specialize in producing rail fastening , track spikes are our main products , track bolt are used for splice bar connections , which are manufactured per ASTMA-183 . track bolts come with heavy square nuts . Grade 2 with heat treatment.



Tensile strength                  Yield strength                       Elongation



828Mpa (min)                          635Mpa (min)                         14%(min)



Below is some of our main products .



1- Button head oval neck track bolt



Diameter                          Length                                     Weight (Kg)

1/2"                                    1-3/4"                                           0.097

1/2"                                    2"                                                 0.10

1/2"                                    2-1/4                                             0.112

5/8                                     2-1/2                                             0.183

3/4                                     3                                                   0.328

3/4                                     3-1/2                                              0.339

3/4                                     4                                                   0.356

7/8                                     4-1/2                                              0.559

7/8                                     5                                                   0.593

1                                        5                                                   0.8

1                                        5-1/2                                              0.839

1                                        6                                                   0.879

1-1/16                                 6                                                   0.995

1-1/8                                   6-1/2                                             1.186



2.Diamond neck track bolts



Diameter                                   Length                             Weight (Kg)

7/8                                             4-1/2                                      0.563

7/8                                             5-1/2                                      0.651

1                                                5-1/4                                      0.889

1                                                5-3/4                                      0.895



Note : All dimensions given inches



3.We produce the fish bolts according the the BS standard , which are applicable for fish plate of BS50. BS60R. BS70A .BS75A .BS75R .BS80A .BS80R .BS90A. BS90R. BS95A.BS95R. BS95N



Nominal size                         Thread length                      Bolt length

3/4                                                    2                                    3-7/8

7/8                                               2-1/8                                    4-3/8

15/16                                           2-5/16                                  4-5/16

15/16                                            2-1/8                                       5

1                                                 2-5/16                                  4-15/16

1                                                 2-11/16                                 6-1/16



Note : All dimensions given inches



4.We produce the fish plate per AS1085.4-1999 , nominal thread diameter is M20/M22/M24 , thread of the fish bolts are finished square .a nominal 45 degree chamfer is to be provided to a depth slightly exceeding the depth of the thread , nut shall be in accordance with AS/NZS 1252



Chemical composition and mechanical properties are below :



C                     Mn                         P                                S

0.55(max)       0.25(min)             0.04(max)                   0.04(max)





Tensile strength               Yield strength                        Elongation

800Mpa                              640Mpa                                 12%



Parafusos para fixação de Trilhos e Tala de Junção
Parafusos para fixação de Trilhos e Tala de Junção
Parafusos para fixação de Trilhos e Tala de Junção
Parafusos especiais para fixação de trilhos
Parafusos especiais para fixação de trilhos

Rail bolt/T-bolt/Clip bolt/Clamp bolt



Our Partner is specialize in producing rail fastening , rail bolts are our main products , below is some of our main products of the rail bolts



1. HS26/HS32 rail bolts for ribbed base plate , available in various dimension as below ,with the grade 4.6 & 5.6 as per UIS864-2 .



Type                             Dimension                               Weight (Kg)

HS26/55                        M22×55/40

                                     Nut M22/H22/S39                            0.45

HS26/65                        M22×65/45

                                    Nut M22/H22/S39                             0.475

HS26/90                        M22×90/45

                                    Nut M22/H22/S39                             0.549

HS32/55                        M22×55/40

                                    Nut M22/H22/S39                             0.469

HS32/65                        M22×65/45

                                    Nut M22/H22/S39                             0.503

HS32/90                        M22×90/45                                      0.577





2. We produced large quantity of clamp bolt & inserted bolt to Russian market , the grade is & 4.6/4.8/5.6/5.8 .



Item                               Dimension                                 Weight (Kg)

Clamp bolt with nut            M22 ×75

                                        M22/S36/H22                                0.475

Inserted bolt with nut          M22 ×175

                                        M22/S36/H22                                 0.78







3. We produce rail bolt .clip bolt for concrete sleeper and crane rail , the diameter is 18mm & 22mm , its length varies from 125mm to 195mm , the material is in accordance with UIC864-2 , grade is 4.5 & 5.6 .



4. We produce the short clip bolt and long clip bolt with BSW thread to Africa market , grade is 4.8



Type                           Dimension                                  Weight (Kg)

Short clip bolt                 7/8-9 ×2-1/2                                   0.504

Long clip bolt                  7/8-9×3-1/8                                    0.554





5. In addition , we can produce the special clip bolts according to our customers' requirement .





Grampos Elastico para fixação de trilhos

Elastic rail clip/ SKL tension clamping



Specialize in producing rail fastening , We produce many kinds of Elastic rail clips & SKL tension clamps . Below is some of main products .



1. Various elastic rail clip with size steel bar diameter from 12mm to 20mm



Diameter                        Weight (Kg)                                 Toe load

12mm                                0.18                                            200-400

14mm                                0.30                                            400-600

16mm                                044                                             500-700

18mm                                0.60                                            800-1000

20mm                                0.78                                            1100-1400



When spring steel deflection is 9.1mm , fatigue life is up to 5 million cycles without breaking .





2. We produce the SKL tension clamp , The SKL tension clamp is a boltable clip with high permanent clip strength. This clip is especially applied in rail constructions with concrete sleepers with the diameter 13mm to 15mm , range from SKL1 . SKL3 . SKL12 .SKL14



Diameter                            Type                           Weight (Kg)

13mm                                  SKL1                                0.49

13mm                                  SKL3                                0.53

13mm                                  SKL12                              0.53

13mm                                  SKL14                              0.505



Fatigue property is no less than 5 million times .Loading property : under pressure 8-12KN , the displacement is between 9-12mm



3. We produce PR series Elastic clip , such as PR309.PR401.PR601



4. The Nabla clips are also within our range ,the hardness is HRC51-55 and they have excellent elastic property ,with load 2500DaN , after the first two tests , variation of the height after releasing is only 0.45mm and after the three more tests , there is only 0.1mm variation of height , the finished Nabla clip can be painted red or other colors according to the requirement of our client



5. We also produce the special rail clip according to our customers' requirement .













Grampos Elastico para fixação de trilhos
Chumbadores para Dormentes de concreto
Chumbadores para Dormentes de concreto
Chumbadores para Dormentes de concreto

Rail shoulder /casting shoulder/Weld-on shoulder



Specialize in producing rail fastening , rail shoulders are our main products , they are produced both in casting and forging , below is some of our main products



1. Casting shoulders are pressed in concrete sleeper and assembly with E clip in order to fasten the rail , the normal material we use is casting iron , the mechanical property and chemical composition are below



Material           Tensile strength(Mpa) Yield strength(Mpa)    Elongation(%)

QT400-15(GGG40)             400                            250                         15

QT450-10(GGG45)             450                            310                         10

QT500-7 (GGG50)              500                            320                          7





                           C                Si               Mn              P               S

QT400-15         3.6-.36           3.0-3.2         0.5            0.07            0.02

Qt450-10          3.4-3.9           3.7-3.0         0.5            0.07            0.03

QT500-7           3.4-3.8           2.5-2.9         0.6            0.08            0.025



2. Rail shoulders are produced by hot forging , which used together with clip bolt and special rail clip to fix the rail , the material can be low carbon steel and mid carbon steel according to our customers' requirement .



3. Weld-on shoulder is used for the typical position of rail , it is welded on flat steel plate instead of the standard tie plate , which produced according to AREA standard









Ancoras para trilhos

Rail anchor



Specialize in producing rail fastening, rail anchors are our main products



Rail anchor are manufactured in one-piece construction for spring steel or equal , heat-treated and designed to eliminate creepage of track ,they provide a large bearing surface against both rail base and tie , avoiding undo cutting and wear , thus prolonging the life of wooden ties. The rail anchors are used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail and so on.



Type                                 Material                             Weight(g/pc)

50Kg                                 60Si2MnA                               800

70LB                                 60Si2MnA                               800

85LB                                 60Si2MnA                               800

90/91LB                             60Si2MnA                               800









Chumbadores para Dormentes de concreto
Placas de apoio

Tie plate /Base plate /Rail plate /Sole plate/Ribbed tie plate



Specialize in producing rail fastening ,tie plates are our main products ,They are used with rail construction to support the rails , depended on the load and the type of rails , choice can be made both casting iron and casting steel , with both types of support boltable as well as weldable clips can be applied , for the discontinuous type of support , we supply various ribbed tie plate , they are produced both in casting iron & casting steel .





Type                                   Dimension                               Holes)                           Incline                     Rail                                Weight(Kg)



Rph 1/160                     345/285/127/160x15/13                   Ø26 (4x)                             1:40                      S 49/S 54                                 7,86

Rp 01/01/160                345/285/127/160x15/13                   Ø26 (4x)                              1:40                     S 49/S 54                                 7,70

Rph 1/210                    345/285/127x210x15/13                   Ø26 (4x)                             1:40                      S 49/S 54                                10,55

Rph 1/210                    345/285/127x210x15/13                   Ø36,3 (2x)                           1:40                     S 49/S 54                                 10,55

Rph 1/210 FVZ             345/285/127x210x15/13                   Ø26 (4x)                              1:40                     S 49/S 54                                10,69

Sph 1(a)345/                 350/127x410x15/13                         Ø26 (8x)                              1:40                     UIC 60                                     20,60

Rph 6/160                    370/310/152x160x15/13                    Ø26 (4x)                             1:40                      UIC 60                                     8,44

Rph 6/210                    370/310/152x210x15/13                    Ø26 (4x)                             1:40                     UIC 60                                     11,32

SZ 60370/                    350/152x420x15/13                          Ø26 (8x)                              1:40                     UIC 60                                    22,73

Rph 11                         Ü664/554x160                                 Ø26 (4x)                              1:40                     S 54                                       15,37

Rph 13                         Ü690/570x160                                 Ø26 (4x)                              1:40                     UIC 60                                    15,27

Rpo 5                           345/285/127x160x15/13                   Ø26 (4x)                              1:20                      S 49/S 54                                  8

Placas de apoio
Talas de Junção
Talas de Junção

Fish plate /rail joint bar



Specialize in producing rail fastening , fish plates are our main products , we produce many kinds of fish plates , which designed to join rail section of different size while keeping gage and running surface in alignment , the raw material we use is mid carbon steel & high carbon steel . The below list is available in our factory



Type                           Length /Diameter                   Weight(Kg)

115RE                           4 hole- 24″                             17.04

115RE                           6 hole -36″                             25.56

132-136RE                     4hole-24″                               17.75

132-136RE                     6hole-36″                               26.63

UIC60                            4 hole - 630/¢26                    18.07

UIC60                            4 hole-600/¢28                      17.47

UIC60                            4 hole - 630/¢25                    18.1

UIC54                            4 hole                                    14.34

UIC54                            6 hole- 800                             19.94

BS80A                          4 hole                                      6.5

BS90A                          685.8 / ¢26                             13.23

BS90A                          792.9/¢26 .2                           15.34

90/91LB                        4 hole                                       18.08

90/91LB                        6 hole                                       19.9

50Kg                             4 hole                                       14.3

50Kg                             6 hole                                        19.5

BS75R                          4 hole                                        6.56

BS60A                          4 hole                                        5.61

S49                              4 hole                                         9.71





Arruelas para ferrovia, simples e duplas
Arruelas para ferrovia, simples e duplas
Placas de fixação

Railway washer



Specialize in produce rail fastening , spring washer and flat washer are widely used on the railway , spring washers are available in single or double types and various sizes. Below is some of our main products



Type                                          Demension               Weight (Kg/Mpcs)

Spring wsaherFe6(UIC864-3)            ¢25                                  90

Spring washer AREA67                     7/8                                 90.55

Spring washer AREA67                      1                                  152.33

Spring washer AREA67                   1-1/8                                187.65

Plain pattern washer                         7/8                                  70.46

Plain pattern washer                          1                                    78.03

Plain pattern washer                       1-1/8                                  85.32

Flat washer ULS6                           47/23/4                                41

Flat washer ULS6                           50/25/4                                42

Palmilha / Almofada para placa de apoio
Palmilha / Almofada para placa de apoio

Rail pad/ rubber pad



Specialize in producing rail fastening , .Rail pad lies between the rails and base plates to keep the rail stably , they made of HDPE/EVA/Rubber to preclude and buffer impact ,increase friction and reduce vibration , we produce the rail pad for E type rail fastening system and SKL type rail fastening system . The following is the properties of the HDPE/EVA/Rubber .

HDPE



No.  Technique parameter      Unit     Technical requirement     Value

1              Density                     g/㎝3                 0.95-0.98               0.95

2              Tensile strength         Mpa                     ≥19                      19

3              Elongation                  %                     >80                       150

4              Melting point              ℃                  170-190                     190

5              Insulation resistance   Ω                 ≥1×1010                3.5×10¹0

6              Hardness                   A                      ≥98                     98(A)



EVA : polyethylene 80%, Vinyl Acetate 20%



No     Technique parameter      Unit   Technical requirement    Value

1             Density                      g/㎝3                  0.95-0.98               0.95

2             Tensile strength           Mpa                       ≥15                   16

3             Elongation                     %                       >500                 550

4             Melting point                   ℃                 170-190                  170

5             Insulation resistance        Ω                 ≥1×1010            5.0×10¹0

6             Hardness                        A                     ≥90                  92(A)



Rubber



No.         Technique parameter                            Unit                 Value

1                   Stiffness                                       KN                 90-130

2                   Hardness shore A                          ℃              72-80degree

3                   Electronic Resistance                    Ω                      ≥106

4                   Tensile strength before aging        Mpa                   ≥12.5

5                   Elongation before aging                  %                     ≥250

Placas de fixação
Placas de fixação
Placas de fixação

Rail clip /Rail clamp /clamp plate



Specialized in producing rail fastening , rail clamps are our main products , below is some of our main products



1.The clip is a boltable, adjustable, self-blocking clip with high clip strength. The adjustability is secured by means of the square taper washer. There are types for M16, M20, M24 fastening material. Like the FM clip, the clip is especially applied with crane tracks on a steel girder or on a concrete foundation with a steel sole plate. The height of the clip is variable, so that there is a suitable clip for virtually every rail type.



2.The gantrail clip is an adjustable, self-blocking clip with a rubber nose and with a modest but permanent pre-stress strength. This clip is available in various types and models. By varying the height of the rubber nose there is a suitable clip for every rail type



3. The KPO clip is a boltable clip, with high clip strength. This clip is applied in combination with ribbed tie plates and T-headed bolts.



Placas isolantes
Placas isolantes

Rail insulator/ guide plate

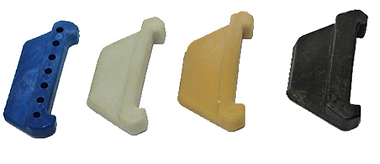

Specialized in producing rail fastening , we produce E type rail insulator and guide plate for SKL rail fastening and Nabla fastening system , the material we use is PA66 , with the color white/dark brown /black , Insulators are used to adjust rail gage and insulate rail from ties and clips . The material properties of PA66 is below:



PA66 : Nylon 66.69%, glass fiber 30%, other 1%



No.  Technique parameter    Unit    Technical requirement        Value

1                 Density                g/㎝               1.3—1.45                   1.45

2            Tensile strength        Mpa≥                 170                         178

3               Elongation               %                   ≤4.4                          4.0

4               Bending Strength    Mpa                 ≥250                         290

5      Impact Strength(No gap)   KJ/m2              ≥80                            85

6             Melting point              ℃             250℃—270                     270

7       Insulation resistance         Ω               ≥1×108                        5×108

8           Glass fiber content       %                30—35                          35

9            Hardness                  HRR              ≥110                             118

Passador para Dormente de Concreto
Palmilha / Almofada para placa de apoio

Plastic dowel



Specialized in producing rail fastening , plastic dowels are our main products , they are pressed in concrete sleeper and assembly with sleeper screws /guide plate /rail clip to fix the rail .the material we use is HDPE & PA66 , with the color white /black /dark brown

 .

HDPE



No.  Technique parameter      Unit     Technical requirement     Value

1              Density                    g/㎝3               30.95-0.98                 0.95

2              Tensile strength         Mpa                     ≥19                      19

3              Elongation                  %                     >80                       150

4              Melting point              ℃                  170-190                     190

5              Insulation resistance   Ω                 ≥1×1010                3.5×10¹0

6              Hardness                   A                      ≥98                     98(A)





PA66 : Nylon 66.69%, glass fiber 30%, other 1%



No.  Technique parameter      Unit     Technical requirement     Value

1        Density                          g/㎝                     1.3—1.45              1.45

2        Tensile strength             Mpa                        ≥170                   178

3        Elongation                      %                          ≤4.4                     4.0

4        Bending Strength           Mpa                      ≥250                      290

5        Impact Strength(No gap)  KJ/m²                   ≥80                        85

6        Melting point                   ℃                       250℃—270            270

7        Insulation resistance        Ω                        ≥1×10/8               5×10/8

8        Glass fiber content          %                        30—35                   35

9        Hardness                     HRR                      ≥110                      118
